24v 40ah Li-Ion Deep Cycle Lithium Battery A5511
Sale price
$28.50
Regular price $99.00
Skip to product information

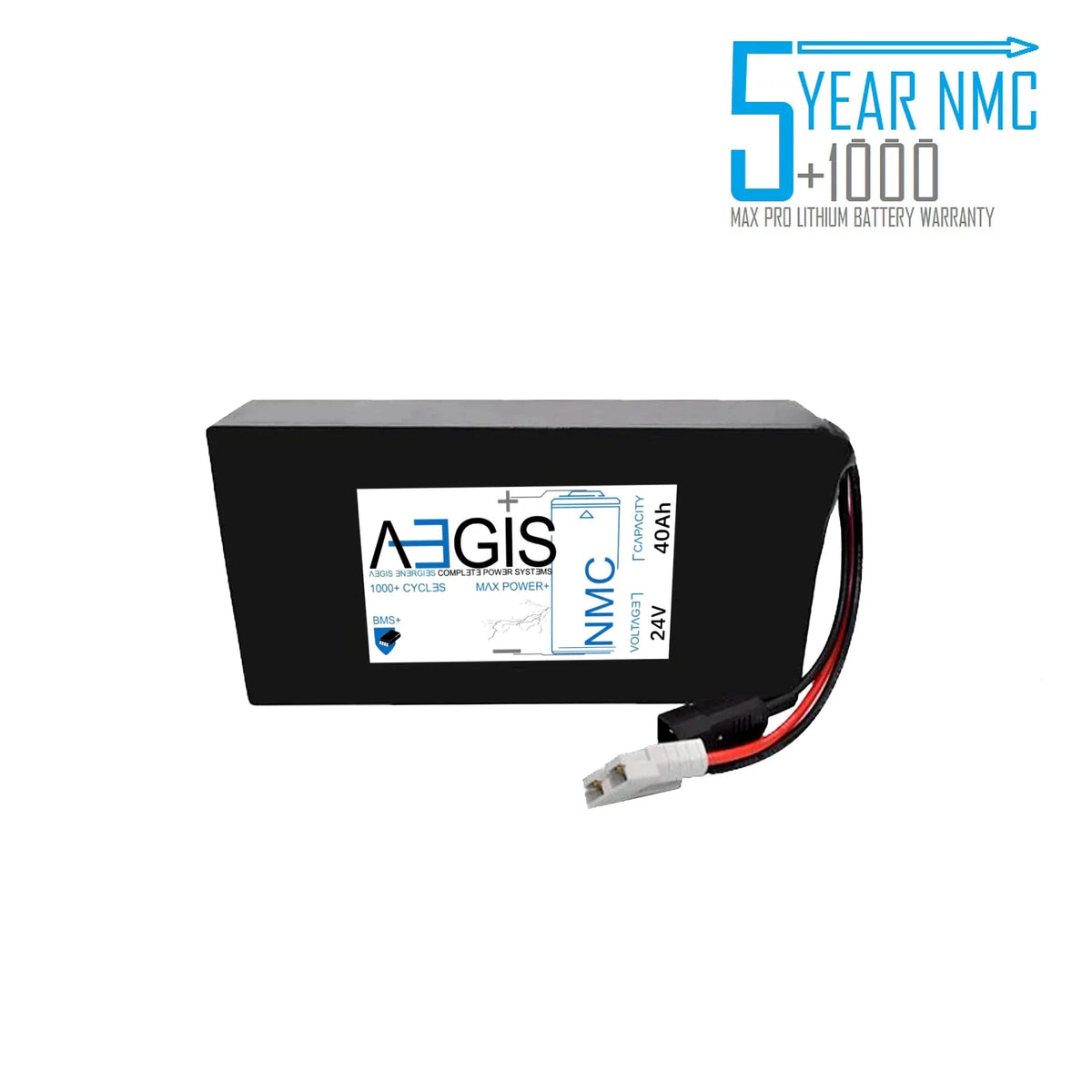

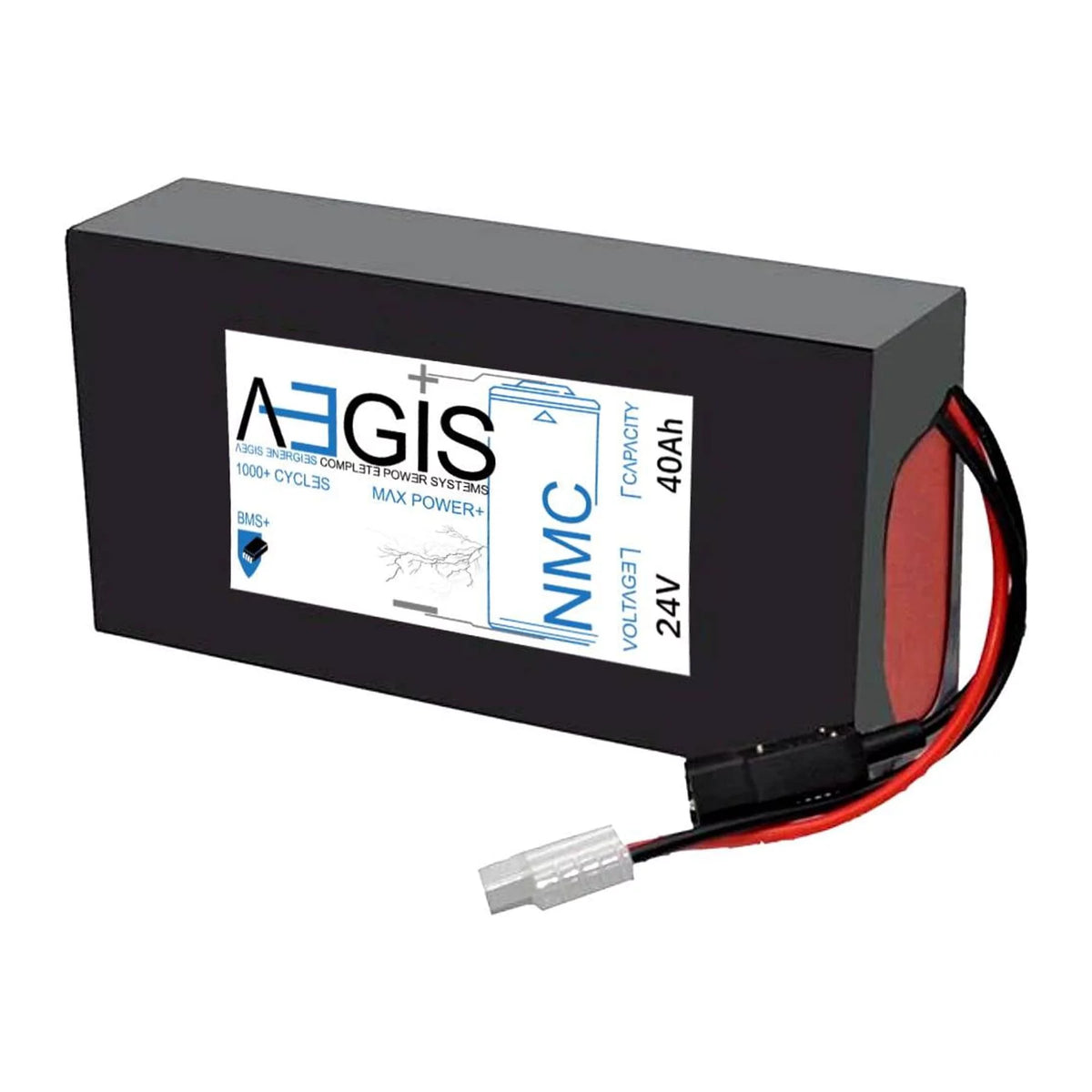

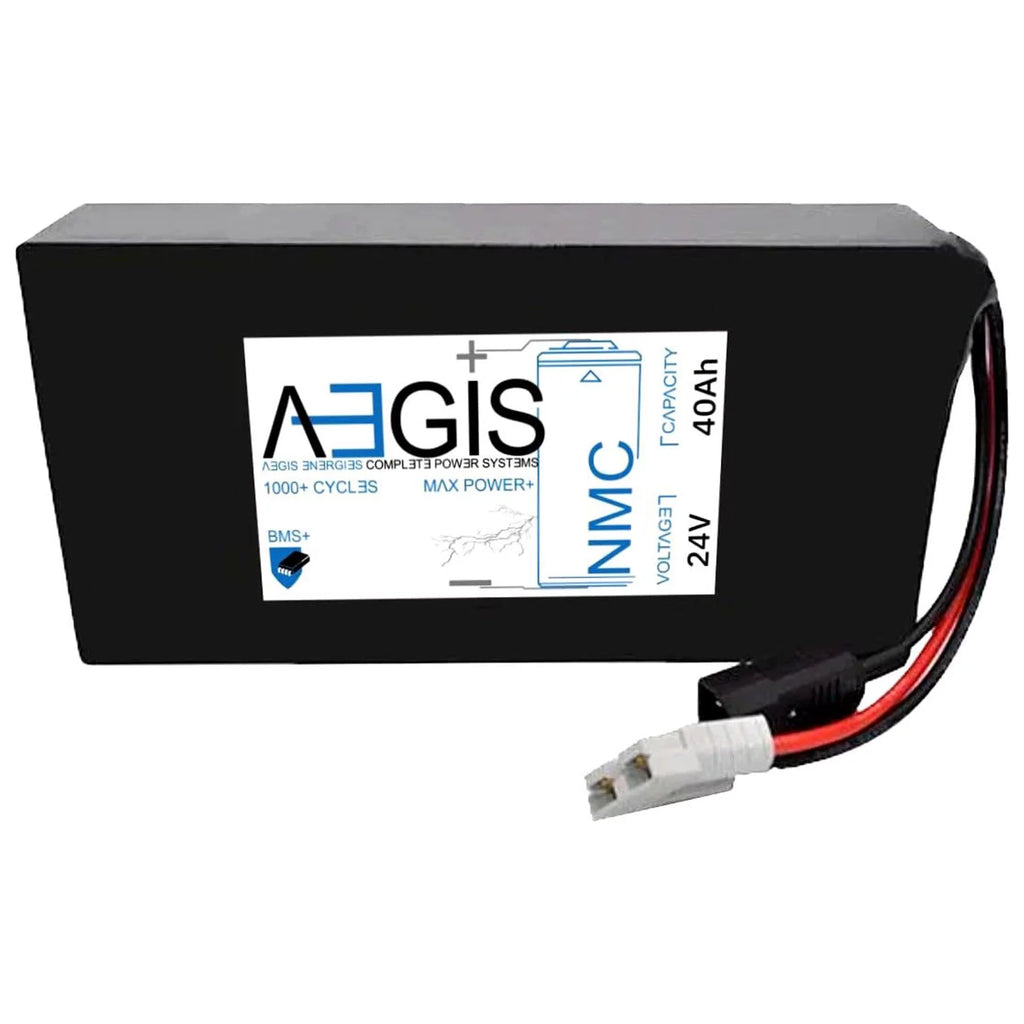

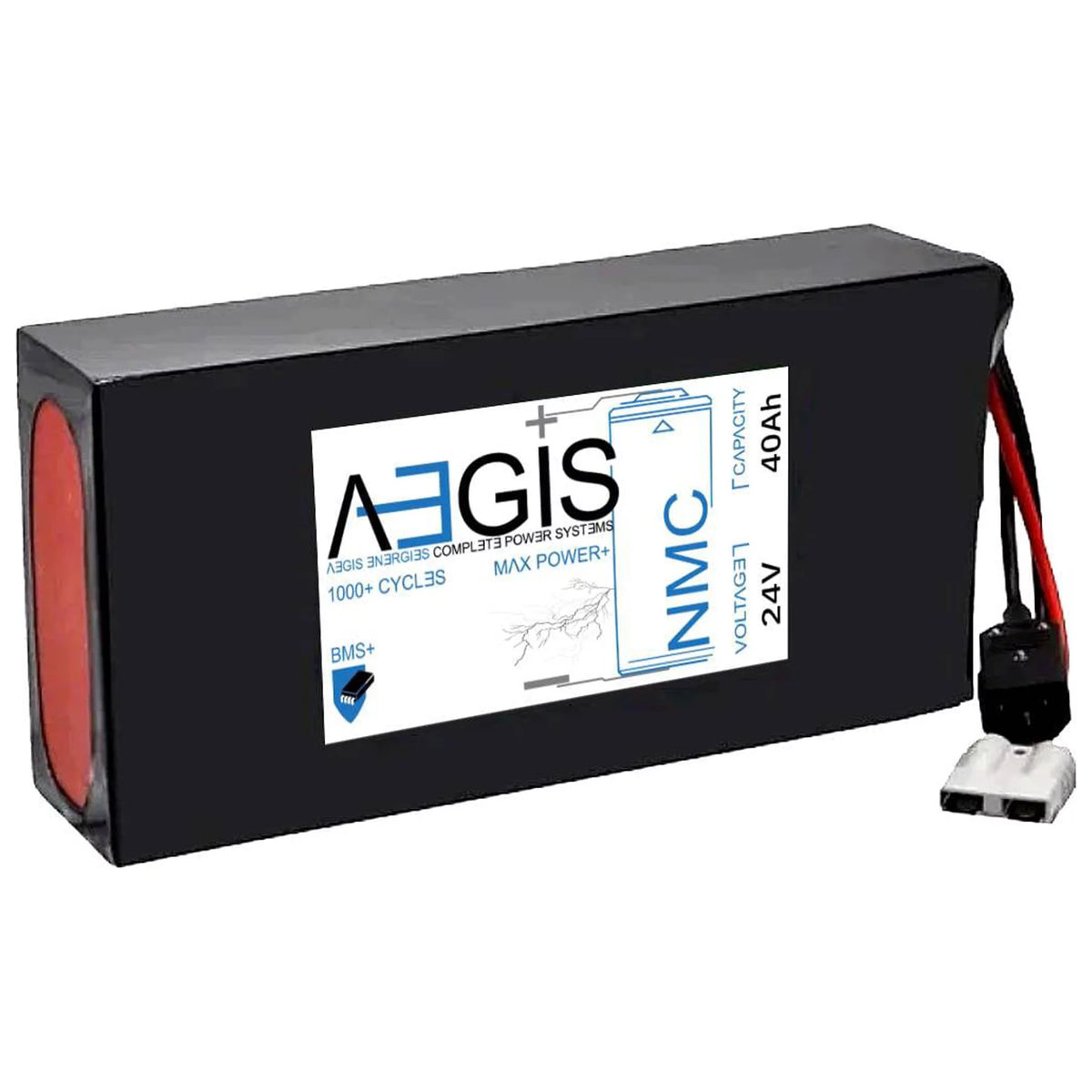

The Aegis Battery 24V 40Ah Li-Ion Battery is a state of the art rechargeable battery pack made with 18650 Li-Ion cylindrical cells packed with black PVC shrink wrap. It is perfect for bike lighting . RC toys . robots . laptops . and DVD external batteries. The battery comes with pre-assembled integrated Anderson Power Pole connectors allowing for easy compatibility. The Aegis battery has a built-in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles . including over-charge . over-discharge . over-current . and short-circuit protection.
Specifications
Battery Type PVC Pack
Battery Chemistry Lithium-Ion
Cell Type/Assembly Method Cylindrical cells/welded
Voltage (V) 24V
Capacity (Ah) 40Ah
Energy Stored (Wh) 960 Watt-Hours
Weight 5.75 kg (12.68 lbs)
Dimension Metric (L x W x H) 310 mm x 140 mm x 80 mm
Dimension Imperial (L x W x H) 12.2 in. x 5.5 in. x 3.1 in.
Discharge Connector SB50 Grey Powerpole
Charge Connector PP45 Red/Black Powerpole
Cycle Life 1000+ cycles
Normal Charge Current 5.0 Amps
Nominal Continuous Discharge Current 20.0 Amps
Maximum Continuous Discharge Current 40.0 Amps
Maximum Peak Discharge Current 80.0 Amps
Charge Temperature 0掳C to 45掳C
Discharge Temperature -20掳C to 60掳C
Operating Humidity 60卤25%R.H
Storage Humidity 60卤25%R.H
Automatic Battery Protection Module/System
Low Voltage Disconnect
Over Voltage Disconnect
Short Circuit Protection
Reverse Polarity Protection
Cell Balancing
Compatible AC-to-DC Charger Specifications:
Input Voltage: AC110V-240V . 50/60HZ
Output Voltage: 29.6VDC
Current: 5A
Connector: IEC C14 (Female)
Model Number: CRG-02405P
Intelligent Technology
- Battery Management System (BMS) Board as Standard
- Every Battery has bespoke board matching its performance parameters
- Comprehensively balances charging and discharging- Internal balancing circuitry and charger circuitry inside BMS
- Comprehensive protections against over-charge . over-discharge . over-voltage . over-current . short circuits . reverse polarity . thermal protection
- Dramatically extends service life
Comprehensive Improvements
- Achieve full depth discharge of 100% Label Capacity
- 鈥淭rue Lithium Capacity鈥?guarantees capacity of purchase is capacity delivered
- Reliable . repeatable full depth cycling without system life cycle degradation
- NMC Systems can be fully discharged safely without impact on system performance
- Multiple times usable capacity of Lead Acid
-Warranty: 5 years NMC Battery Warranty
24v 40ah Li-Ion Deep Cycle Lithium Battery A5511
Sale price
$28.50
Regular price $99.00
Shipping calculated at checkout.
Specifications
Battery Type PVC Pack
Battery Chemistry Lithium-Ion
Cell Type/Assembly Method Cylindrical cells/welded
Voltage (V) 24V
Capacity (Ah) 40Ah
Energy Stored (Wh) 960 Watt-Hours
Weight 5.75 kg (12.68 lbs)
Dimension Metric (L x W x H) 310 mm x 140 mm x 80 mm
Dimension Imperial (L x W x H) 12.2 in. x 5.5 in. x 3.1 in.
Discharge Connector SB50 Grey Powerpole
Charge Connector PP45 Red/Black Powerpole
Cycle Life 1000+ cycles
Normal Charge Current 5.0 Amps
Nominal Continuous Discharge Current 20.0 Amps
Maximum Continuous Discharge Current 40.0 Amps
Maximum Peak Discharge Current 80.0 Amps
Charge Temperature 0掳C to 45掳C
Discharge Temperature -20掳C to 60掳C
Operating Humidity 60卤25%R.H
Storage Humidity 60卤25%R.H
Automatic Battery Protection Module/System
Low Voltage Disconnect
Over Voltage Disconnect
Short Circuit Protection
Reverse Polarity Protection
Cell Balancing
Compatible AC-to-DC Charger Specifications:
Input Voltage: AC110V-240V . 50/60HZ
Output Voltage: 29.6VDC
Current: 5A
Connector: IEC C14 (Female)
Model Number: CRG-02405P
Intelligent Technology
- Battery Management System (BMS) Board as Standard
- Every Battery has bespoke board matching its performance parameters
- Comprehensively balances charging and discharging- Internal balancing circuitry and charger circuitry inside BMS
- Comprehensive protections against over-charge . over-discharge . over-voltage . over-current . short circuits . reverse polarity . thermal protection
- Dramatically extends service life
Comprehensive Improvements
- Achieve full depth discharge of 100% Label Capacity
- 鈥淭rue Lithium Capacity鈥?guarantees capacity of purchase is capacity delivered
- Reliable . repeatable full depth cycling without system life cycle degradation
- NMC Systems can be fully discharged safely without impact on system performance
- Multiple times usable capacity of Lead Acid
-Warranty: 5 years NMC Battery Warranty
